Nex mini Depositor

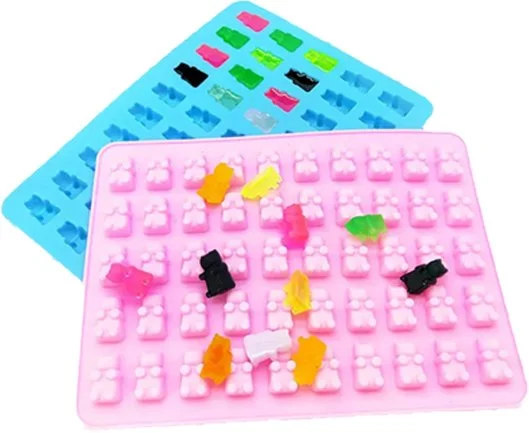

This depositor features servo drive cleated conveying, automatically indexing silicone sheet molds beneath depositing nozzles. Operators load molds onto the conveyor from the front, where the cleated conveyor presents them to the nozzles for filling. Molds are then transported to the rear off belt and onto a holding plate until removed by the operator. With a capacity of up to 25 deposits per minute or 10,000 deposits per hour, it's programmable for up to three (3) deposits per mold pocket. All product contact parts are FDA-approved. Equipped with ten (10) depositing nozzles for fill volumes ranging from 0 to 4.5ml, the precision servo drive pump ensures a weight variation of +/- 2%. Its HMI control system boasts 20 different product setting memory banks. The depositor includes a 7-liter hopper with variable heating controls (30~150°C). Operating at a voltage of 230V/1ph, it weighs 60kg and measures 590 x 400 x 450mm (L x W x H). Mounted on a round tube sanitary frame, it's portable with locking casters.
